Features:

■ It can achieve intelligent switching and fine-tuning compensation of it’s load resistance so as to improve the accuracy of the resistance.
■ It carries temperature protection function as the temperature value can be flexibly set. When the temperature of the load box goes high, the upper computer will send out alert, and it won’t back to normal state until the malfunction is removed.

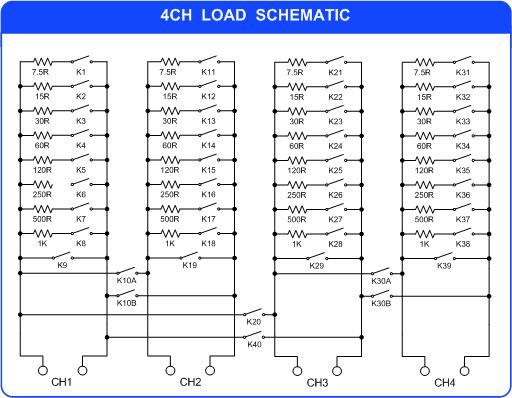

■ By using RS232 serial port control(with drive), the load resistance can be switched to 0Ω, 4Ω/1500W, 8Ω/ 750W, and 16Ω/375W.
■ By using serial port control, 4 channels can be paralled into 2 channels, and each channel’s load resistance can achieve 0Ω and 2Ω/3000W.
■ By using serial port control, 2 channels can be paralled into 1 channel, in which the load resistance can achieve 0Ω and 1Ω/6000W.

Technical specification
