JOJO-JPA1024 Amplifier Module

Products

current location：Home> Standard Product> Standard Product>JOJO-JPA1024 Amplifier Module

clicks:627
product description:Size: 235*306*90mm
JPA1024 amplifier module is mainly used for electroacoustic testing, which uses the ultra-low noise OP and Class-A circuit to reject the noise from inputs. It supplies power and plays the role of preamplifier for microphone and artificial mouth.

Features:
■ It has 3 channels for microphone power supply (+24V)
■ It has 3 channels for microphone preamp (0dB/20dB/40dB with 0.01% THD)
■ It has 3 channels for 20dB amplifier gain (for artificial mouth and speaker) ■ Output interface: BNC ■ Input interface: BNC
Technical Specification:
1. Microphone Preamp and Power Supply
● Gain: 2CH for 0dB-20dB/ 1CH for 20dB-40dB
● Frequency response: 10Hz-20KHz(+/-0.5dB)
● Channels crosstalk: 80dB(20-20KHz)
● THD+N: 0.01% (20-20Khz)
● Input impedance: 2.55KΩ
● Output impedance: 120Ω
● Phantom power supply: 24V ,4mA

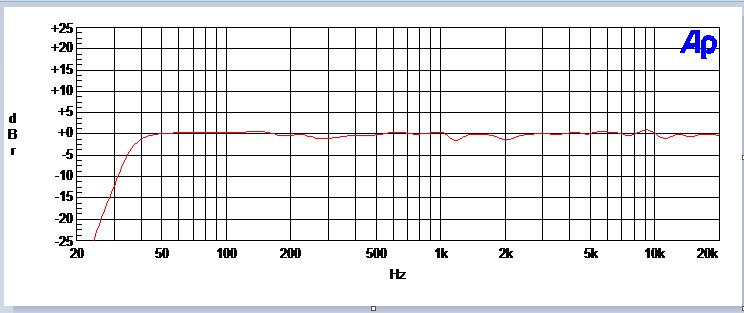

● Frequency response:

2. Power Amplifier
● Gain: 20dB
● Frequency response: 10Hz-20KHz(+/-0.5dB)
● Channels crosstalk: 80dB(20-20KHz)
● THD: 0.003%(20-20Khz)
● Input impedance: 45KΩ
● Output impedance: 4Ω
● SNR: 90dB
● Max output power: 40W(4Ω)
● Max output voltage: 12VAC
● Power supply: AC 220V(optional)

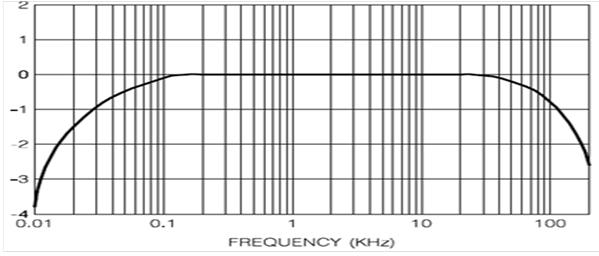

● Frequency response:
